Cord stripper system
Cord Stripper is used to strip and separate the steel cables of conveyor belt.
Request a Quote

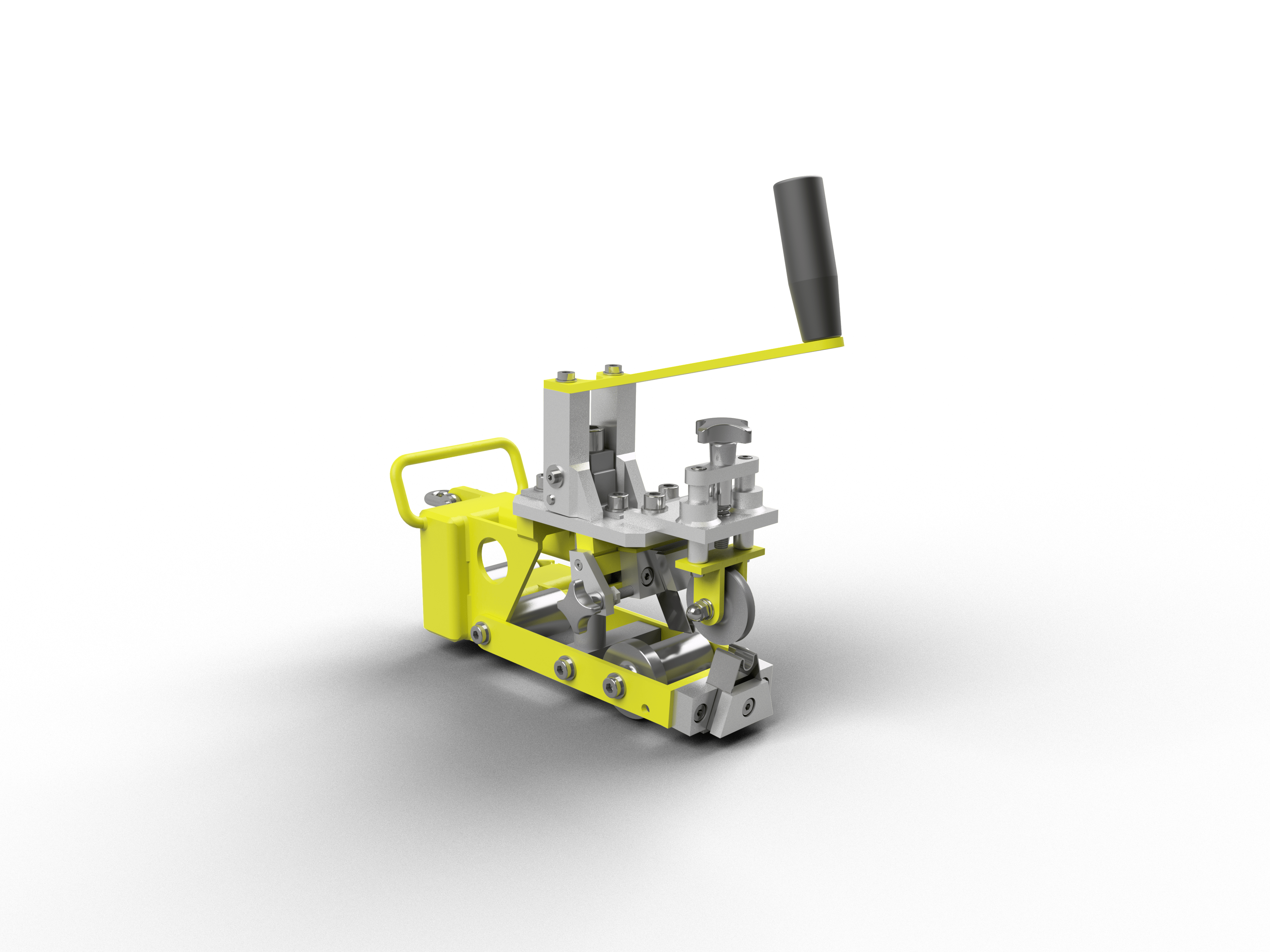

Cord stripper system
The Cord Stripper is an indispensable accessory to strip and separate the steel cables of conveyor belts.
To use the cable stripper system for the first time, you need the following components:
- cord stripper
- min. 50 x blades (top) for cord stripper
- min. 50 x blades (bottom) for cord stripper
- power winch CS
- slide rail for capacity winch CS
- Belt thickness up to 43 mm
- Ø cable 3,7 - 12,6 mm
- Cord width 10 - 25 mm
- Cover plate thickness running side till 25 mm
- Cover plate thickness carrying side till 12 mm
- Dimension (L x H x W) 375 x 215 x 405 mm
- Weight 12 kg
- 1 blade holder set type A + pressure roller
- 1 blade holder set type B + pressure roller
- 1 blade holder set type A + pressure roller
- 1 blade holder set type B + pressure roller
- 1 tool set

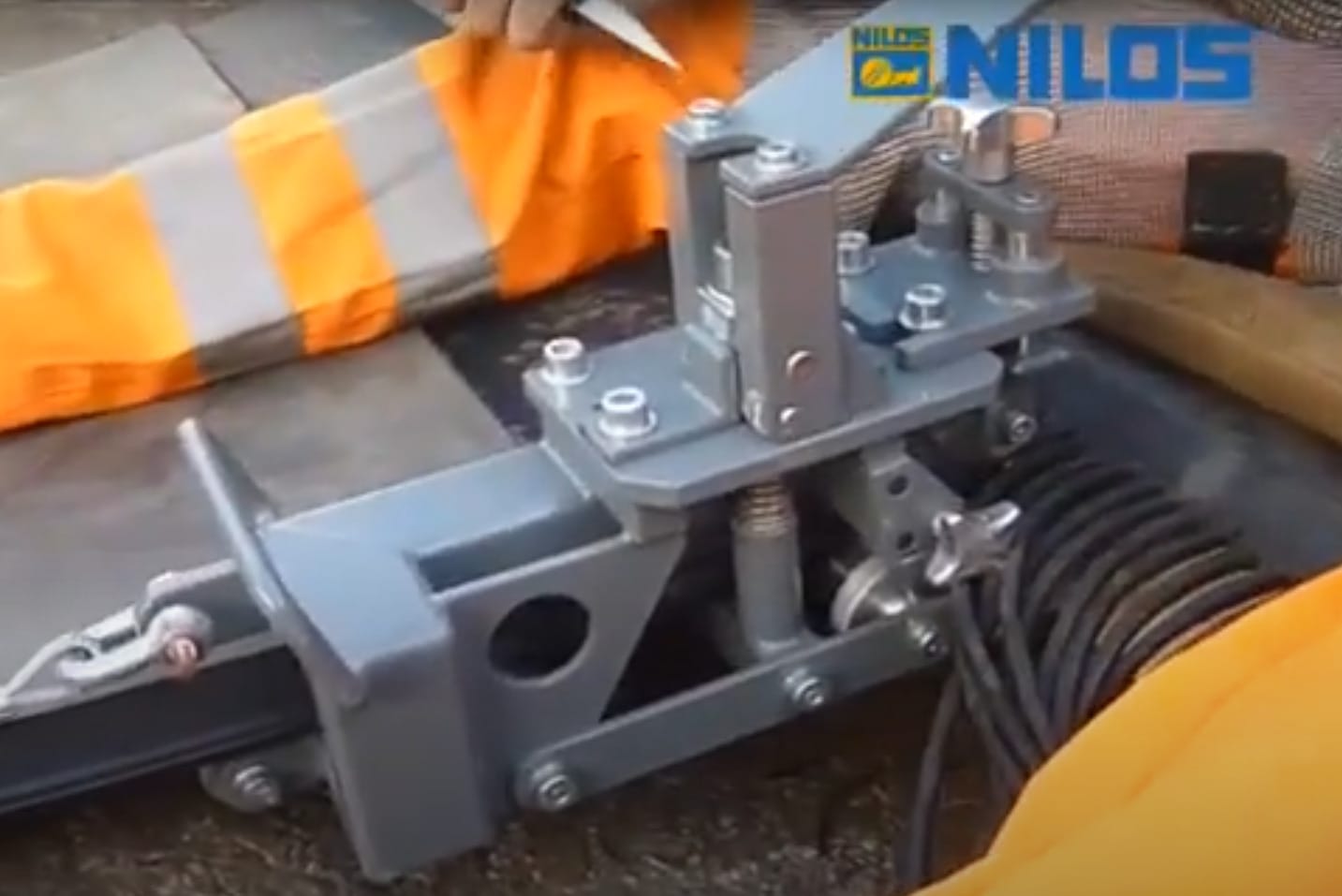

See it at work
